Conveying System

Pneumatic Lint Conveying Systems

• Pneumatic Transport System for Lint from D.R.Gins to a Post Cleaner Machine :
   With the help of this system contamination of lint is avoided. The system also helps in removal of dust, leafy particles and short fibers from good cotton. Studies have      shown that use of such system improves the grade of cotton.

• Pneumatic Transport System from Post-Cleaning machine to Lint Halls :
  The system generally comprises of Material Transport fan, duct line and stationery condensors in the Lint Halls. This reduces labour dependance and also prevents contamination of Ginned Lint. The stationary condensors additionally contributes in removal of dust, leafy particles and short fibers.

• Pneumatic Transport System from Post-Cleaning machine to Lint Halls to Press :                                                      Presently we can offer systems to transport lint from the lint halls to an area adjacent to the press with a capacity of 160-180 Kilos within 2 to 3 minutes depending upon the requirement.

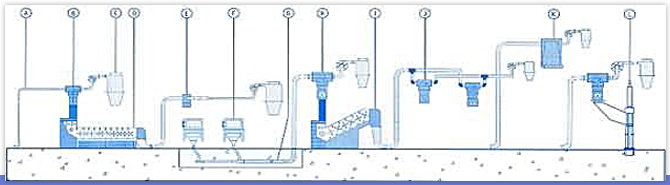

• (A) & (C) Kapas Conveying System: (Seed Cotton Conveying systems from godown to Pre-Cleaner).

• (B)Stone Catcher: For removal of stones, sticks and other heavy matter.

• (D) Pre-Cleaner: (Kodi Cleaner)

• (E) Pneumatic seed cotton conveying systems to transport material to a central or side platform in gin house.

• (F) High Efficiency Double Roller Gins.

• (G) & (H) Pneumatic Lint Conveying systems for collecting of Lint from the D.R.Gins to a Post Cleaning Machine.

• (I) Post Ginning Cleaner. Inclined Cleaner with a option of 3 or 6 beaters.

• (J) Pneumatic Lint Conveying System from Post-Cleaner to lint Hall/Halls.

• (K) Pneumatic Lint Conveying Systems from Lint Hall/Halls to Press halls.
